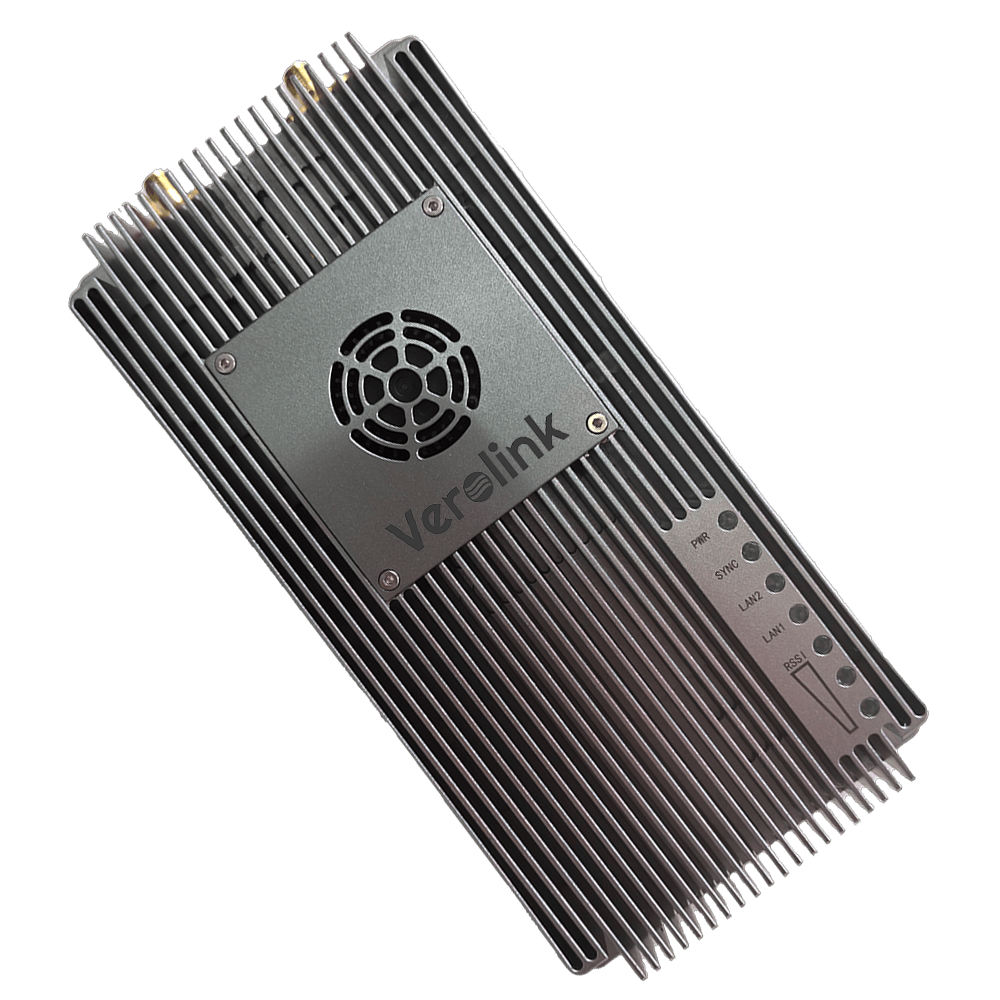

Verolink P43 20W 1.4Ghz 200km Wireless Data/Video Transmission System

The Verolink P43 is a 20W, 1.4GHz TDD wireless transmission and receiver device, developed using industrial-grade FPGA and transceiver technology. It features real-time interference detection, adaptive channel selection, adaptive channel code rate, automatic retransmission, and automatic power control. These capabilities significantly enhance its resistance to multipath interference and overall anti-interference performance, ensuring high reliability, excellent stability, and low latency. This product is ideal for applications such as firefighting, inspection, monitoring, and drones.

Product Features

• Comprehensive solution for video, command and control, and telemetry
• Air-to-ground visibility exceeds 150km with omni antennas
• Air-to-ground visibility exceeds 200km with directional antennas
• Adaptive Channel Selection (ACS)
• Real-time interference detection with anti-interference algorithm processing
• Automatic Power Control (APC)
• Adaptive modulation mode based on Shannon limit (Auto MCS)
• High reliability, excellent stability, and low latency
• Dual network ports and four serial ports

Working Frequency:

• 1350~1470MHz

Wireless Channel:

• Transmission Power: 43dBm (20W)
• Transmission Distance: 200km (using directional antennas), 150km (using omni antennas)
• Channel Bandwidth: 10MHz
• Modulation Mode: QPSK/16QAM
• Receiving Sensitivity: -99dBm@10MHz@QPSK1/3
• Data Rate: Up to 15Mbps@16QAM3/4
• Transmission Delay: 10ms

Interface Specifications:

• Radio Frequency Interface: SMA*2
• Equipment Interface: Network Port *2 + TTL/RS232 *2 + 422 + SBUS

Electrical Specifications:

• Overall Power Consumption: Air Unit ≤ 90W, Ground Unit ≤ 15W
• Working Voltage: DC 22~30V, Typical value: 28V@4A

Physical Specifications:

• Dimensions (LWH): 180mm * 81mm * 28mm
• Weight: 415g
• Working Temperature: -40℃~+65℃

Product Includes

Verolink P43 Wideband Bidirectional Wireless Links (2 units):

• Verolink P43 bidirectional wireless link, operating frequency range: 1350~1470MHz, transmission power: 20W, power supply: 15~26V, typical 24V.
• Serial port configured to RS232 level.
• Includes power connection cables and J30J cables.

Airborne Antennas (2 units):

• 29cm small fiberglass antennas for 1.4GHz frequency band.

Ground Antennas (2 sets):

• 60cm fiberglass antennas for 1.4GHz frequency band, with 2.5-meter extension cables and suction cups.
