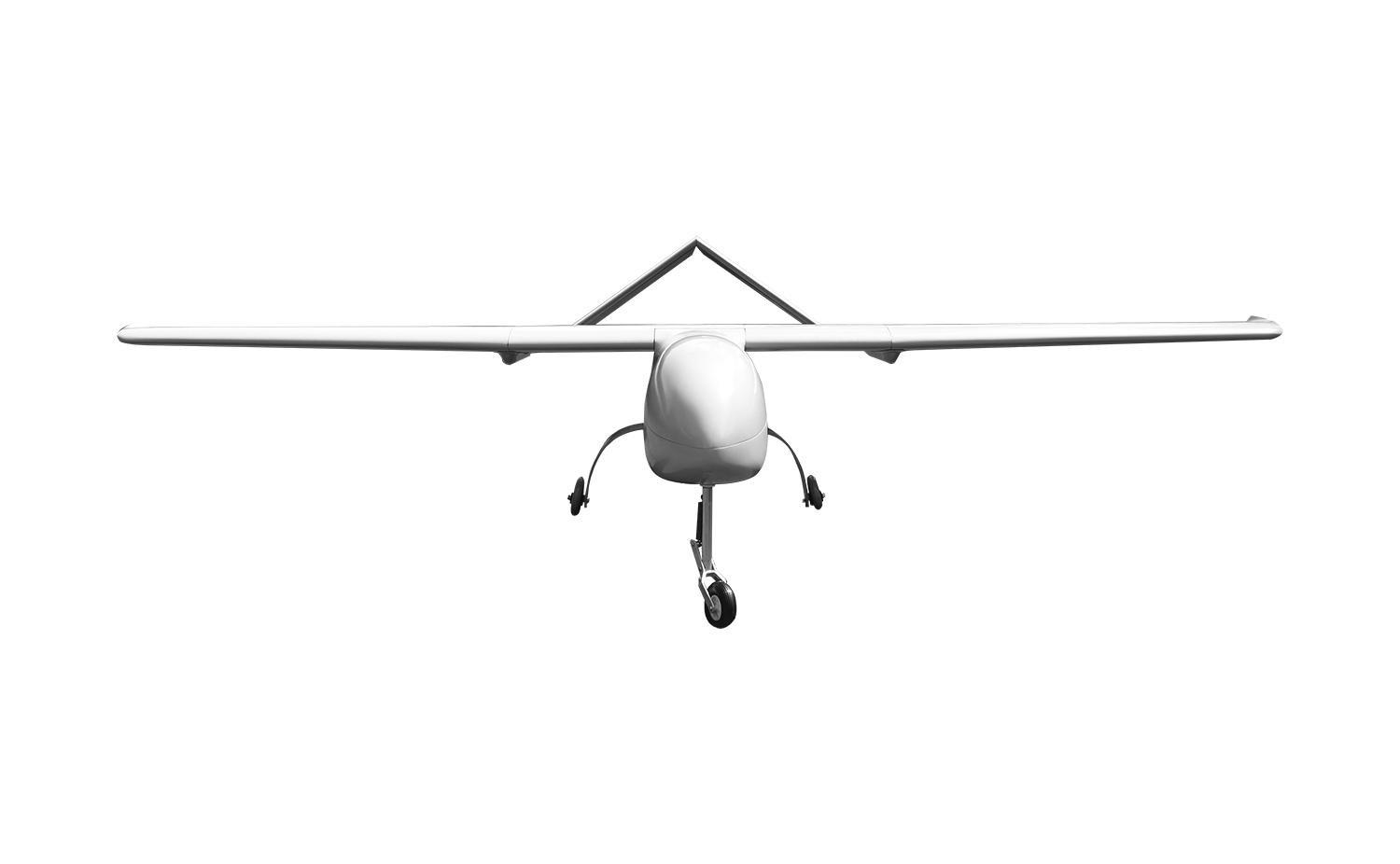

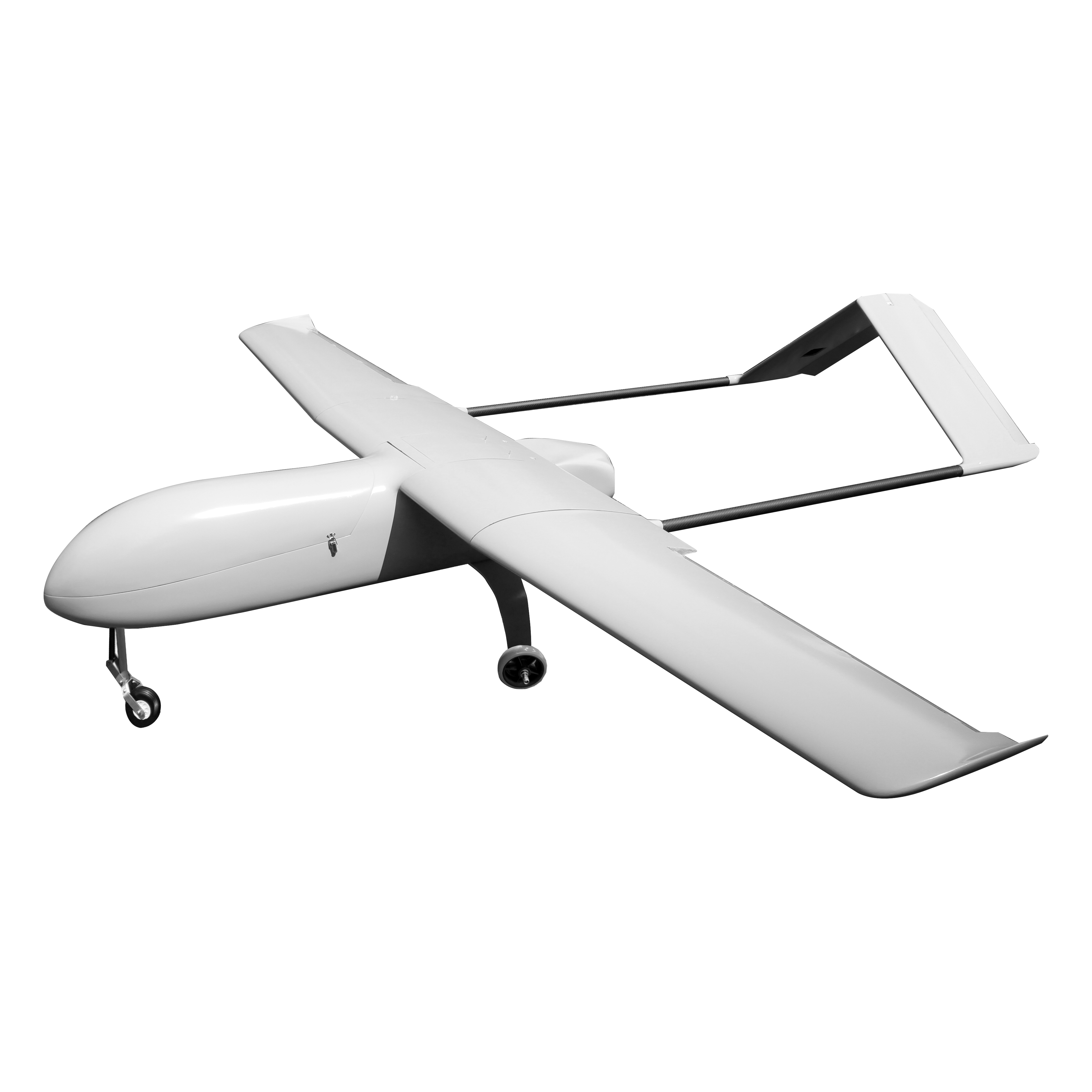

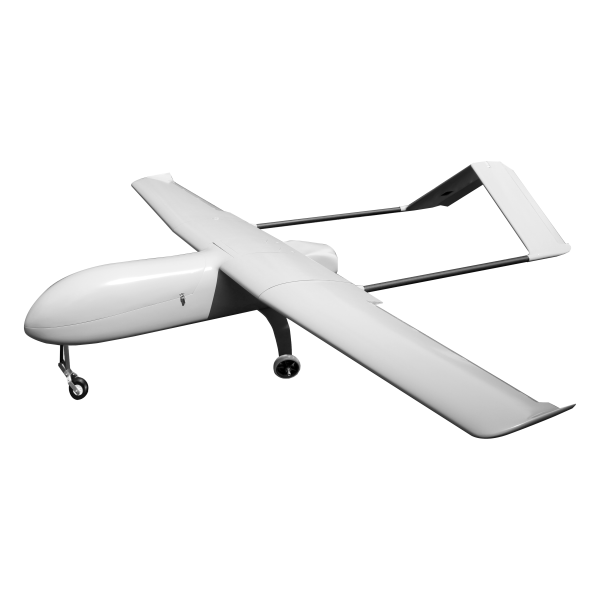

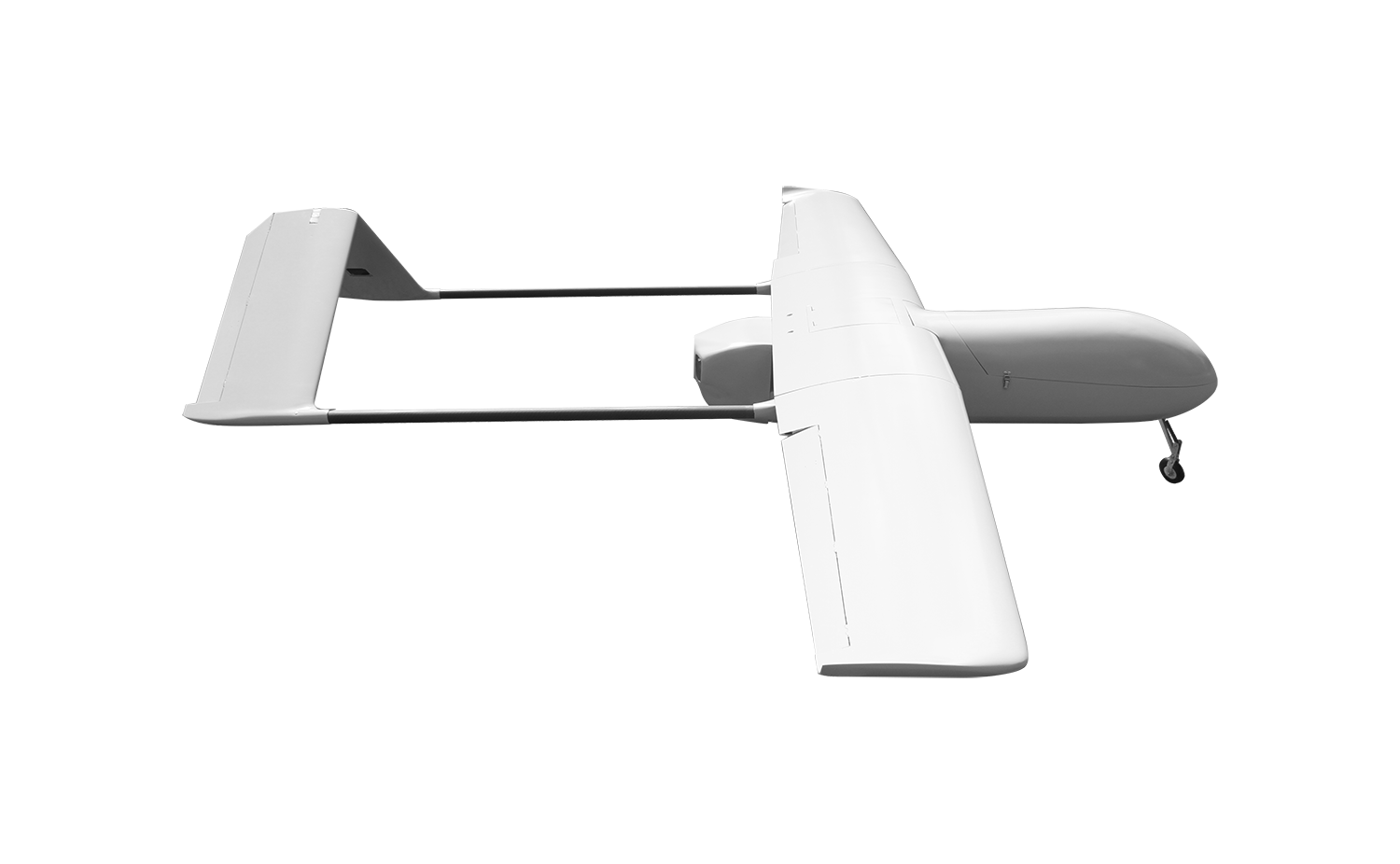

Skyeye 3200 Fixed-wing UAV Platform

Also widely known as Mugin 3220, the Airmobi Skyeye 3200 is a versatile and customizable fixed-wing UAV platform, designed specifically for professional aerial applications. This robust airframe boasts a wingspan of 3200mm and a length of 2348mm, ensuring exceptional aerodynamic performance. Crafted from a durable composite of wood and fiberglass, the Airmobi Skyeye 3200 weighs 12.45 kg when empty and is engineered to carry a payload of up to 8 kg.

This UAV platform is unique in that it is sold as an empty frame kit, offering users the freedom to customize it according to their specific mission requirements. Users can integrate a 50-80cc engine and choose between gasoline or electric power systems, both of which are available separately. The frame is optimized for both short and long-endurance missions, with the capability to fly up to 3 hours on just 6 liters of fuel.

Whether you are conducting surveys, monitoring, or other professional aerial tasks, the Airmobi Skyeye 3200 Fixed-wing UAV Platform provides a reliable and adaptable solution to meet your needs.

Technical Data:

• Wingspan: 3220mm
• Length: 2348mm
• Wing Area: 112dm²
• Empty Weight: 12.45kg
• Flying Weight: 25kg
• Maximum Flying Time: 3 hours
• Payload Capacity: 8kg

Recommended Gasoline Power Package:

• DLE60 Engine x 1
• Savox 1256 Servo x 6
• 23×9 High Power Propeller x 1

Recommended Electrical Power Package:

• Dualsky GA6000.8 180RPM/V Brushless Motor x 1
• Dualsky XC13036HV 130A High Voltage ESC x 1
• Savox 1256 Servo x 5
• 24×12 High Power Propeller with Prop Cover x 1

The Airmobi F32 is available in both H tail and V tail, we’ll send the V tail version to you if without special instruction.

Keywords: Skyeye 3200, Mugin 3220
